Expert CNC Backlash Testing and Calibration

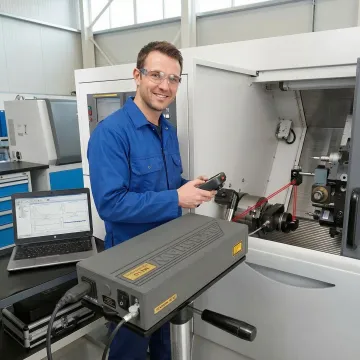

Backlash is checked using precision measurement tools like Renishaw's QC20-W Ballbar system and laser interferometry. The Ballbar performs circularity tests that reveal backlash through axis reversal patterns, while laser measurements quantify bidirectional positioning accuracy across the full travel range of each axis. These methods identify the magnitude and location of backlash issues.

Acceptable backlash depends on your part tolerances and machine specifications. For precision work, backlash should typically be under 0.0002 inches (0.005mm). High-precision applications may require even tighter limits. Our testing measures your actual backlash against manufacturer specifications and your quality requirements to determine if calibration or mechanical service is needed.

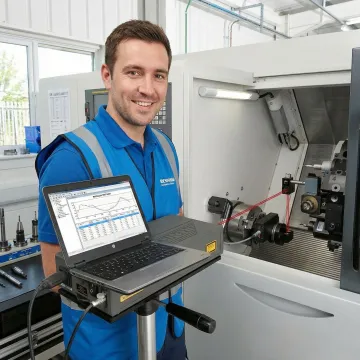

The procedure involves mounting calibrated measurement equipment, commanding the machine to move in opposite directions along each axis, and measuring the positional difference. Ballbar testing evaluates circular motion to reveal backlash during axis reversals, while linear testing uses laser interferometry to measure bidirectional repeatability. Results are analyzed to identify mechanical wear, servo issues, or compensation errors.

Backlash testing should be performed annually as preventive maintenance, after any mechanical repairs or axis work, when part quality issues arise, and to verify new machine specifications while under warranty. High-volume production environments or machines running tight tolerances may benefit from more frequent testing every six months.

Backlash is caused by mechanical clearance or play in drive components—typically worn ballscrews, loose couplings, bearing wear, or improperly adjusted gibs. Over time, normal machine use creates wear that increases clearance between components. Poor maintenance, contamination, or mechanical damage can accelerate backlash development.

Backlash can be reduced through mechanical repair (replacing worn components, adjusting preload) or compensated through machine control software. Compensation applies offsets that account for backlash during direction changes. The best approach depends on backlash severity—minor amounts can be compensated, while excessive backlash requires mechanical service.

A comprehensive backlash evaluation typically takes 2-4 hours depending on machine size and number of axes tested. Ballbar testing is relatively quick (30-60 minutes per plane), while full linear axis calibration with laser interferometry requires more time for setup and data collection across the machine's complete travel range.

We minimize disruption through efficient wireless testing procedures and flexible scheduling. Most testing can be performed during off-shifts or scheduled maintenance windows. Our local service to Portland OR and SW Washington provides faster response times, allowing you to plan testing around your production needs with minimal downtime impact.
