Machine Performance and Condition Monitoring Services

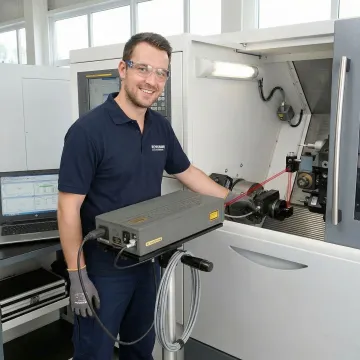

Machine condition monitoring is the process of continuously or periodically measuring key performance parameters of CNC machines and manufacturing equipment to detect wear, alignment issues, and accuracy drift before they cause production problems. It uses precision measurement tools like laser interferometers and ballbars to verify positioning accuracy, repeatability, and geometric performance against specifications.

The five key elements of condition monitoring are: 1) Vibration analysis to detect mechanical wear, 2) Temperature monitoring for thermal expansion effects, 3) Precision measurement of positioning accuracy and repeatability, 4) Geometric verification including straightness and squareness, and 5) Performance trending over time to identify gradual degradation. Together these provide a complete picture of machine health.

Preventive Maintenance (PM) follows a fixed time schedule regardless of actual machine condition, while Condition-Based Maintenance (CbM) uses real measurement data to determine when maintenance is actually needed. CbM reduces unnecessary maintenance and catches developing problems earlier by monitoring actual performance parameters rather than relying on predetermined intervals.

Calibration frequency depends on machine usage, part tolerances, and quality requirements. New machines should be verified immediately after installation while still under warranty. Production machines typically need annual or semi-annual verification, with more frequent monitoring for high-precision or high-volume operations. Ballbar testing can be performed quarterly for quick health checks.

Condition monitoring identifies positioning errors, backlash, servo mismatch, axis squareness problems, straightness deviations, rotary axis misalignment, pitch and roll errors, and repeatability issues. It can also detect problems caused by installation errors, foundation movement, wear, thermal effects, and hidden shipping damage on new equipment.

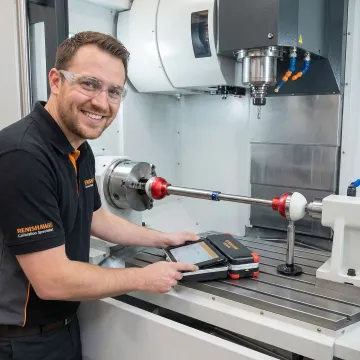

Testing time varies by machine size and complexity. Ballbar testing typically takes 30-60 minutes and provides a quick health snapshot. Complete laser interferometer testing of all linear axes usually requires 2-4 hours. Rotary axis calibration and electronic leveling add time based on the number of axes and machine configuration.

Testing is scheduled to minimize production impact, often during setup time, shift changes, or planned maintenance windows. Wireless ballbar systems reduce setup time significantly. Most testing requires the machine to be available but doesn't require extensive disassembly or reconfiguration, allowing quick return to production.

You receive detailed reports documenting all measurements, comparison to specifications, identified issues, and NIST-traceable certification. Reports include graphics showing positioning errors, repeatability data, and geometric deviations. This documentation supports quality system audits, customer capability demonstrations, and warranty claims if problems are found on new equipment.
