Expert Machine Tool Error Analysis and Calibration

Machine tool error analysis uses precision measurement equipment like laser interferometers and ballbar systems to identify positioning errors, mechanical wear, and alignment issues in CNC machines. It's critical because even minor inaccuracies compound over axis travel, causing dimensional errors, scrap parts, and production delays. Regular analysis prevents these problems before they impact quality.

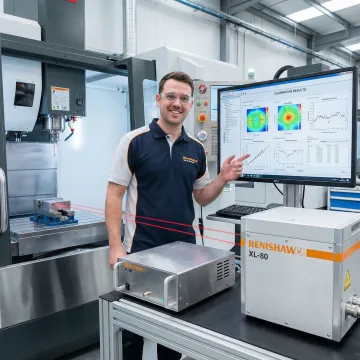

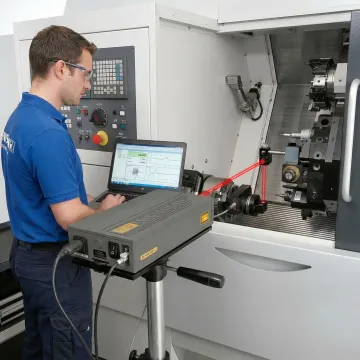

Our Renishaw laser interferometer provides accuracy to 1.0 parts per million (one millionth of an inch per inch), which exceeds the 10:1 ratio required for proper calibration. All measurements are fully traceable to NIST and International Standards, ensuring reliability and acceptance for quality audits and warranty verification.

Calibration frequency depends on machine usage, part tolerances, and criticality. New machines should be verified immediately after installation to catch shipping damage while under warranty. High-precision operations typically calibrate annually or semi-annually, while high-volume production may require quarterly checks. Ballbar testing can monitor condition between full calibrations.

Ballbar testing uses a telescoping bar with precision sensors to measure machine circularity as axes move in coordinated patterns. It quickly identifies backlash, servo mismatch, squareness errors, and reversal problems. It's ideal for routine health checks, validating service work, troubleshooting accuracy issues, and supporting predictive maintenance programs with minimal machine downtime.

Yes, and we strongly recommend it. Calibrating new machines before warranty expiration verifies they meet manufacturer specifications and identifies installation damage or shipping issues. This documentation protects your investment by ensuring problems are corrected at the manufacturer's expense rather than becoming your responsibility after warranty expires.

Time varies by machine size and services required. Ballbar testing typically takes 1-2 hours for a quick health assessment. Full laser interferometer calibration of a 3-axis machine usually requires 4-8 hours depending on axis travel and complexity. We work efficiently to minimize production disruption while ensuring thorough, accurate measurements.

We're based in Portland OR and primarily serve Portland and SW Washington with faster response times than out-of-area providers. We also provide service throughout Northern California, Oregon, Idaho, and Washington. For facilities outside these areas, we can arrange calibration service, though response times may be longer than our local Portland service area.

We provide detailed reports identifying specific errors and their likely causes—mechanical wear, alignment issues, or control problems. This actionable data helps you prioritize repairs, order correct parts, and work with machine builders or service technicians efficiently. Our machine operator background means we explain findings in practical terms that support informed maintenance decisions.
